EMERGENCY/STOP PUSH-BUTTON IP67 240VAC

Emergency /stop push-button IP44 or IP67 with text shield

- 2 NO, 2NC, NO+NC

- Turn release, key release possible

- 240-300 VAC

- 24-125 VDC

- Cover RAL1021, Box RAL7035

- SIL-certificate for the push-button

- Box IK08

Box also in other RAL colors

ModelDescriptionOrder no.Switch3D/CAD files
600 011Solid/IP4423 100 002 NO3D/CAD
600 012Solid/IP4423 100 012 NC3D/CAD
600 013Solid/IP4423 100 02NO + NC3D/CAD
600 111PG16/IP6723 100 052 NO3D/CAD
600 112PG16/IP6723 100 062 NC3D/CAD
600 113PG16/IP6723 100 07NO + NC3D/CAD
Shield frame/SuojakehykselläPG16/IP6723 100 252 NO3D/CAD
Shield frame/SuojakehykselläPG16/IP6723 100 262 NC3D/CAD
Shield frame/SuojakehykselläPG16/IP6723 100 27NO + NC3D/CAD
Machinestop, blackPG16/IP67-68972045411STMSNO + NC Black3D/CAD

Datasheet, productlist

Through alternatives:

- Solid equipped with 2 x membrane seal (9-13), IP44. Instlled by customers needs, bottom/side.

- 1 pcs PG16, IP67, Multipart seal: 7,5-10-12,5-15

SFS-EN 13850, IEC 60947-5-5

2310000.05.Technichal

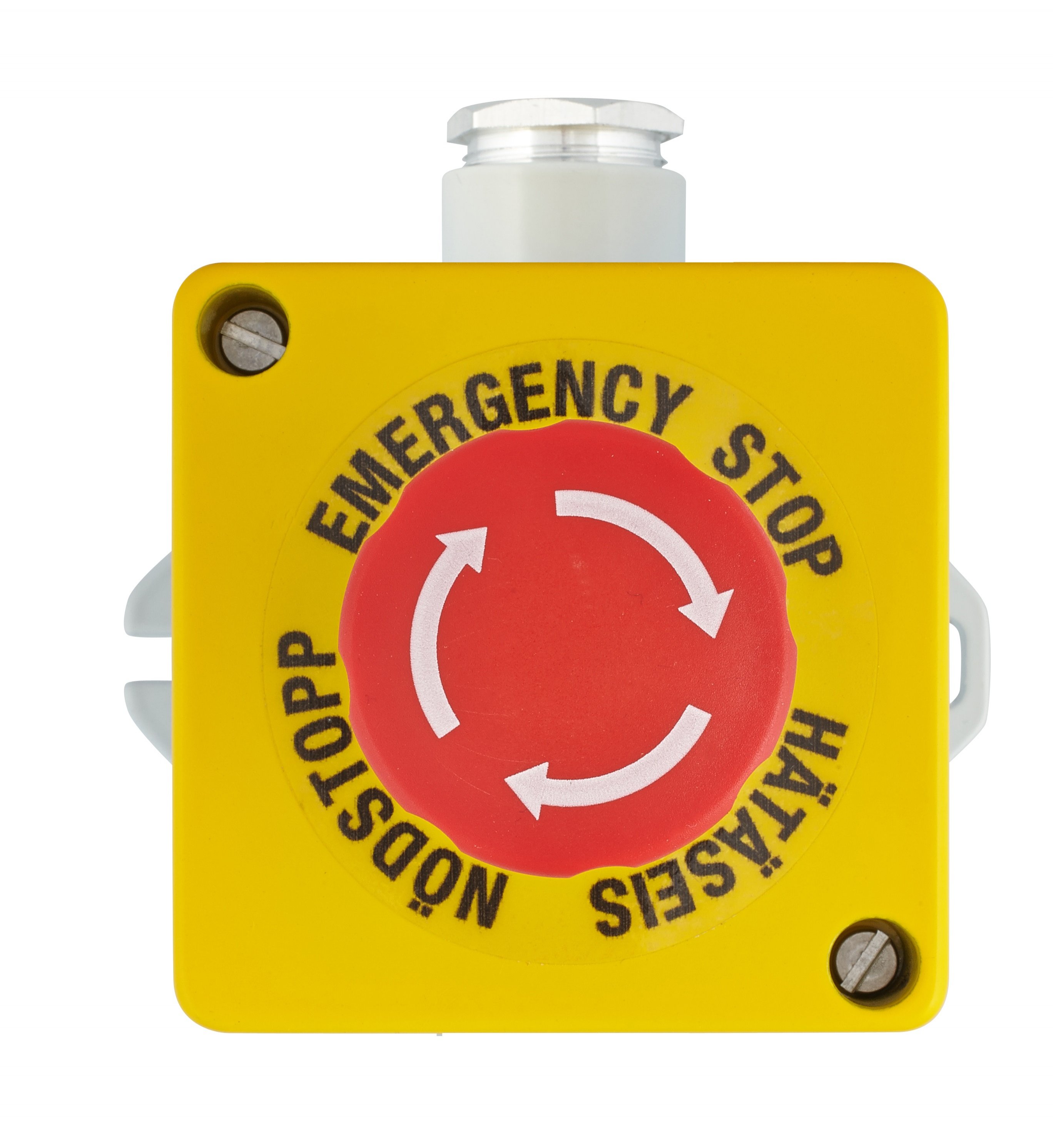

2310005uusiXeng

2310005 07black  2310025 27
 Box also available as black.   23 100 25 - 27

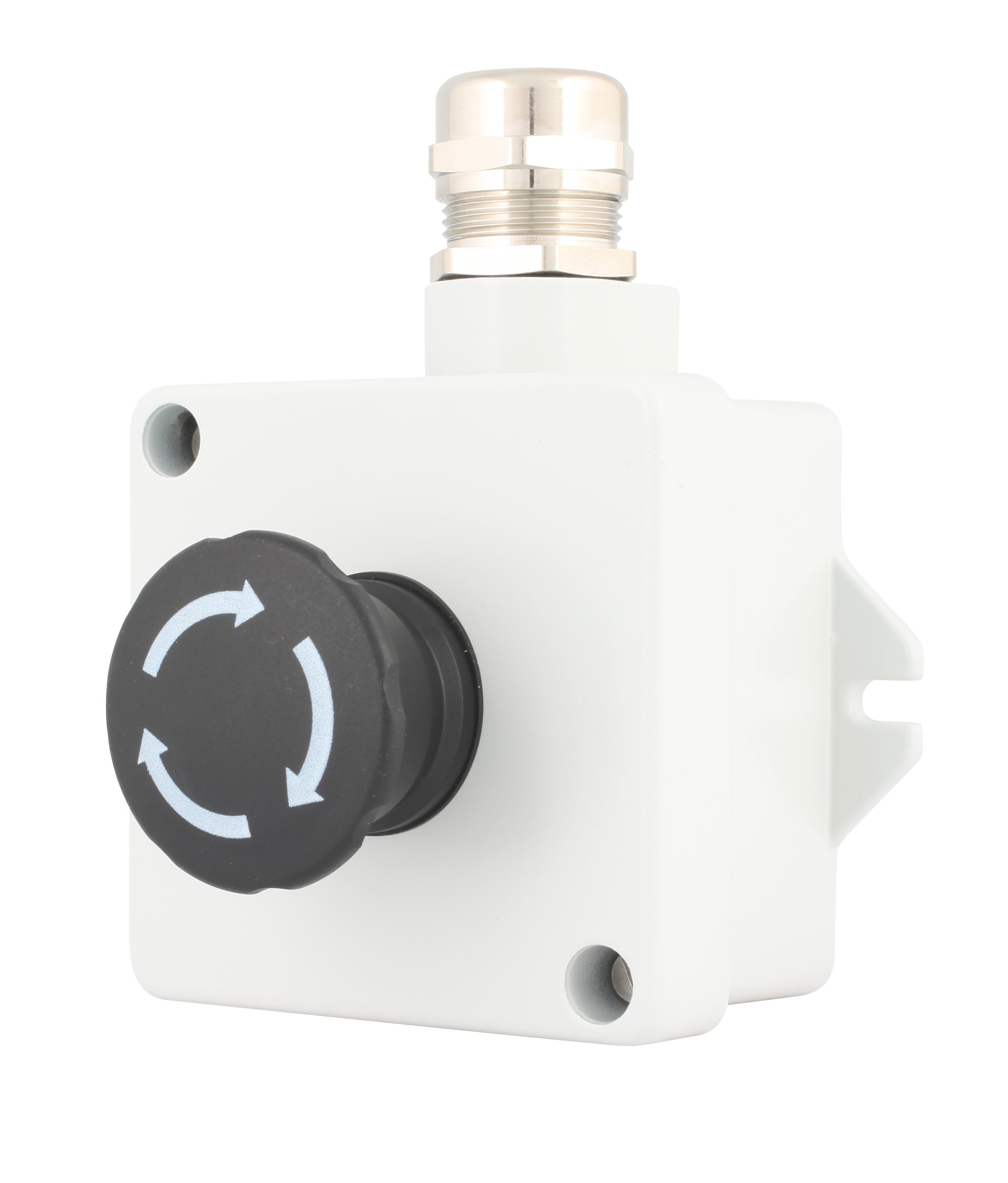

 IMG 0809
 Machine stop, 972045411STMS Datasheet



IMG 9707 Fotosto

9723108XXX

Em.stop: 90mmØ button, size: 100x100x130 (w*l*h), NO+NC/2NC/2NO,

IP65, Box aluminum IK09, chromatated and painted.



                  23 100 05 - 07

2310005X.1

2310005piir

                  23 100 25 - 27

2310025 27

                  23 100 00 - 02

2310000 02

2310000piir
